Amplicon releases new range of fieldbus gateways, the Moxa MGate 4101-MB-PBS series. These innovative converters are used for effortlessly connecting Modbus devices to any PROFIBUS network (e.g. Siemens S400 and S300 PLC networks).
Numerous hours of data-collection and manual address mapping can be eliminated with the MGate 4101’s QuickLink feature, which automatically configures the gateway within minutes. All models are industrial-grade with a metal housing, DIN-Rail mounting and offer internal optical isolation (MGate 4101I-MB-PBS only) for serial signals to meet industrial application demands.
QuickLink technology eliminates the guesswork of device parameter configuration using two unique software features called AutoLearning and AutoMapping. When the MGate 4101-MB-PBS is connected to an existing master PLC communicating and a Modbus slave device, it can automatically detect the command parameters and map them into a format usable by the PROFIBUS master (PLC).
Industrial applications require specific features for fieldbus gateways; the MGate 4101-MB-PBS includes dual power inputs, relay output warning, a wide operating temperature range and isolated inputs; all of which benefit critical industrial applications.
Nike Air Max Plus TN
The HIM HART Loop Interface and Monitor unlocks the full potential of new and in-place smart HART multivariable transmitters and valves. It converts HART to 4-20mA Signals. The HIM allows up to three additional analog process variable measurements from a smart device with no additional process penetrations or wiring.
The new DRTB Series thermocouple terminal blocks are manufactured with thermocouple alloys to guarantee accurate readings. A built-in SMPW compatible female receptacle accepts a miniature thermocouple connector. The female connector allows the user to connect to a handheld meter for applications such as data collection, quality assurance compliance, capability studies and troubleshooting installation or repairs.

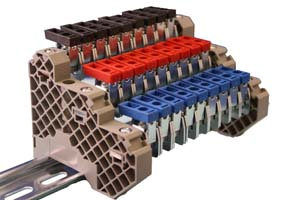

With several options to select from, ASI can supply all your requirements for a busbar or power distribution connection system that is going to save you time and money. We can offer you single and multiple busbar options, screw clamp and spring clamp terminations, panel or DIN rail mounting and color coded terminations, to name a few.
